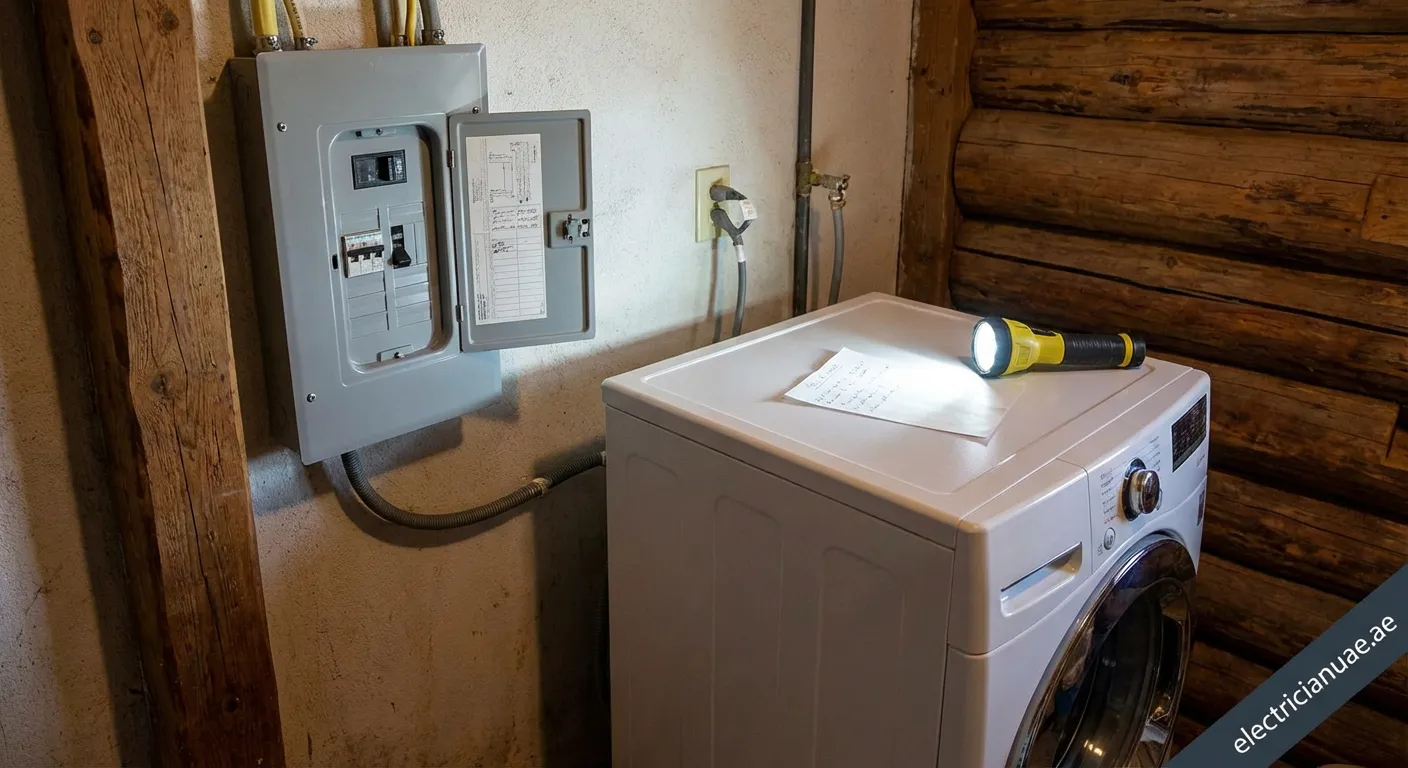

Why Your Washing Machine Trips the Power

Common Causes of Power Tripping

Understanding why your washing machine trips the power starts with identifying the root cause. Here are the most frequent culprits:

1. Ground Fault Issues

A ground fault occurs when electricity escapes its intended path and flows into the ground through an unintended route. In washing machines, this typically happens when:

• Water leaks onto electrical components
• Wiring insulation degrades due to age
• Moisture accumulates inside the motor housing

Ground faults are dangerous and cause immediate circuit breaker trips as a safety mechanism.

2. Heating Element Problems

The heating element is responsible for warming water during wash cycles. When it fails:

• Mineral buildup from hard water causes overheating
• Internal shorts develop within the element
• The element touches the metal casing

This is one of the leading reasons why your washing machine trips the power during hot water cycles specifically.

3. Motor Failures

Your washer's motor contains windings that can deteriorate over time:

• Worn bearings cause friction and increased current draw
• Insulation breakdown leads to short circuits between windings
• Overheating damages internal components

Motor-related issues often cause tripping during spin cycles when the motor works hardest.

4. Circuit Overload

Sometimes the problem isn't with the washer itself but with your home's electrical setup:

5. Water Ingress Problems

Washing machines combine water and electricity—a risky combination. Water can enter:

"Even small amounts of moisture on live connections can create conductive paths that trip breakers instantly."

Check these vulnerable areas:

• Door seal leaks allowing water into electronics
• Hose connection failures near wiring harnesses
• Pump seal deterioration letting water reach motor connections

6. Wiring Issues Over Time

Internal wiring deteriorates due to:

1. Vibration damage: Constant movement loosens connections over years of operation
2. Heat degradation: Repeated heating cycles make insulation brittle
3. Rodent damage: Mice sometimes chew wires in seldom-moved appliances
4. Poor repairs: Previous DIY attempts may have created hazards

7. Faulty Power Cord

The external power cord takes daily abuse:

• Kinking from being pushed against walls creates hotspots where insulation fails internally leading to intermittent shorts—often explaining why tripping happens randomly rather than consistently.
• Plug prongs become loose or corroded from humidity exposure making poor contact generating heat at connection points which eventually triggers protection mechanisms.

Diagnostic Steps to Take First

Before calling a technician:

Step 1: Test another outlet to rule out circuit-specific problems. Step 2: Unplug other devices sharing the same circuit. Step 3: Inspect visible cords for damage signs like exposed wires melting plastic or burn marks around plug pins. Step 4: Note exactly WHEN tripping occurs—during fill wash drain or spin cycles—as this narrows down which component might be failing.

When Professional Help Is Necessary
