How to Fix a Broken Saw Switch: A DIY Guide

A power tool that won't start effectively halts any project. For carpenters and DIY enthusiasts, knowing how to fix a broken saw switch is an essential skill. A faulty switch is one of the most common reasons a circular saw, table saw, or miter saw fails to operate. Instead of buying a new tool, you can often solve the problem with a simple replacement part and a bit of patience.

Safety First: Preparation Before Repair

Before attempting to figure out how to fix a broken saw switch, you must prioritize safety. Electrical repairs carry risks.

• Unplug the tool: Never work on a saw connected to a power source.
• Clear the workspace: ensure you have a clean, well-lit bench.
• Remove the blade: This prevents accidental cuts while manipulating the saw body.

Diagnosing the Problem

Before tearing your tool apart, confirm that the switch is actually the culprit.

1. Check the Power Source: Ensure the outlet works and the breaker hasn't tripped.
2. Inspect the Cords: Look for frays or cuts in the power cord.
3. Check the Brushes: Worn carbon brushes can mimic a bad switch.
4. Use a Multimeter: This is the definitive test. With the saw unplugged, test the switch for continuity. If the multimeter does not beep or show zero resistance when the trigger is pulled, the switch is dead.

Tools Required for the Job

To successfully perform this repair, you will need:

• Screwdrivers (Phillips and Flathead, or Torx depending on the brand).
• Needle-nose pliers.
• Compressed air (to clean dust).
• A replacement switch (ensure it matches the model number exactly).
• A digital multimeter.

Step-by-Step: How to Fix a Broken Saw Switch

Once you have confirmed the failure and gathered your tools, follow these steps.

1. Open the Switch Housing

Locate the screws securing the handle or the switch box cover. Remove them carefully and set them aside. Gently separate the housing halves. You should now see the internal wiring and the switch mechanism.

2. Document the Wiring

This is a critical step in learning how to fix a broken saw switch without creating new problems. Take a clear photo of how the wires are connected to the old switch. Usually, there are black (live) and white (neutral) wires. Incorrect wiring can cause shorts or ruin the new switch immediately.

3. Remove the Old Switch

Using the screwdriver, loosen the terminal screws holding the wires to the switch. If they are push-in connectors, use a small tool or paperclip to release the wire. Gently pull the old switch out of its housing.

4. Clean the Area

Sawdust is the enemy of electrical contacts. While the housing is open, use compressed air to blow out any accumulated wood dust. This maintenance prevents future overheating issues.

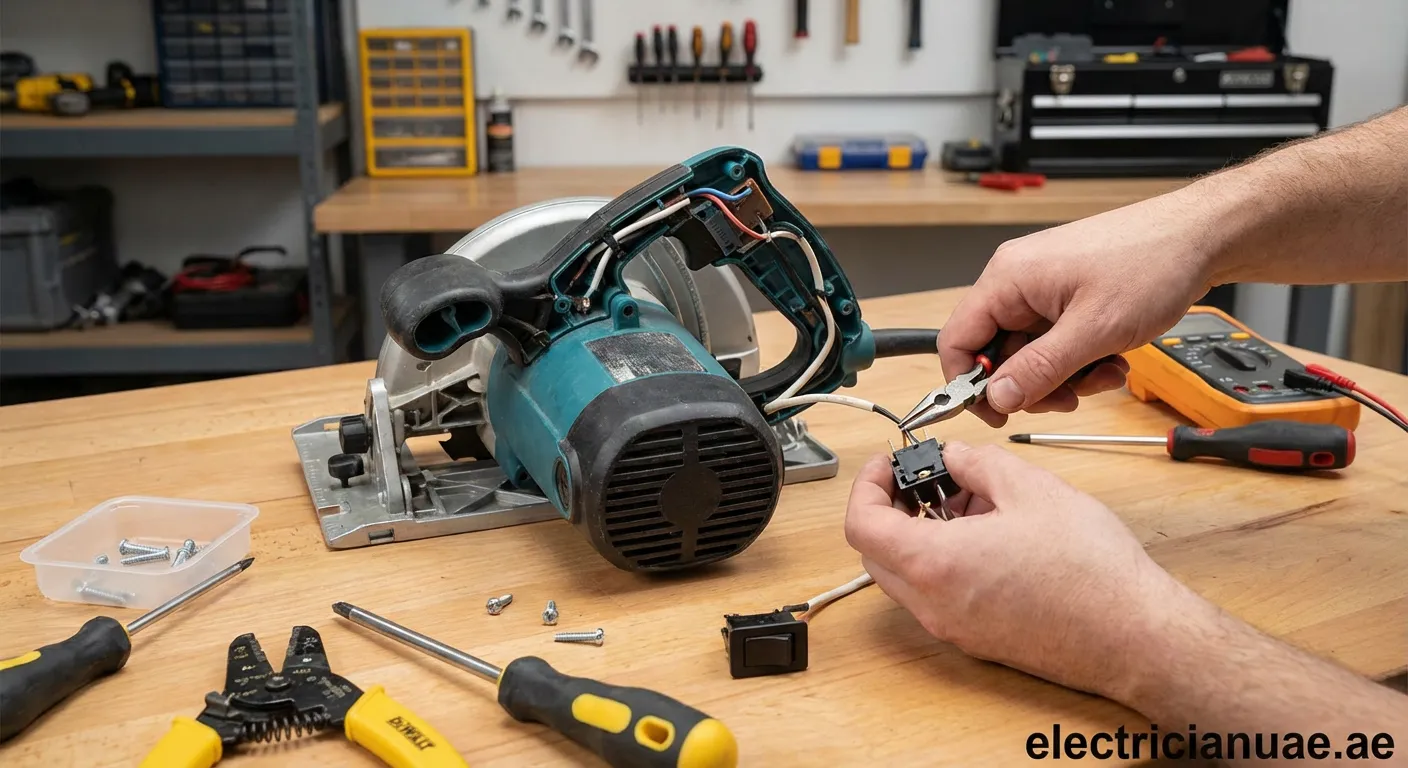

5. Install the New Switch

Connect the wires to the new switch exactly as they were on the old one, referring to your photo. Tighten the terminal screws securely. Loose connections can lead to arcing. Place the new switch into the housing slot, ensuring no wires are pinched.

6. reassemble the Housing

Align the handle or cover halves carefully. Reinsert the screws and tighten them. Do not overtighten, as plastic housings can crack.

Testing the Repair

Plug the saw back into the power outlet. Ensure the lock-on button (if present) is disengaged. Squeeze the trigger. The saw should start immediately. If it does, you have successfully learned how to fix a broken saw switch. If it sparks excessively or fails to start, unplug it immediately and re-check your wiring connections.
